Precise Continuous TOC Analyses in Low ppb Ranges for Pharmaceutical Water

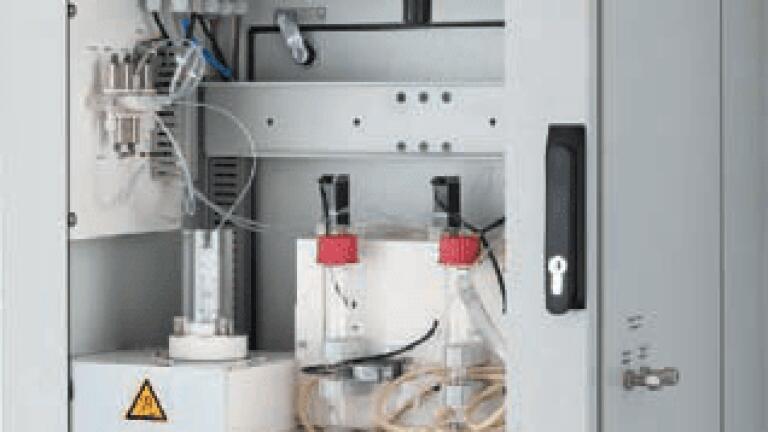

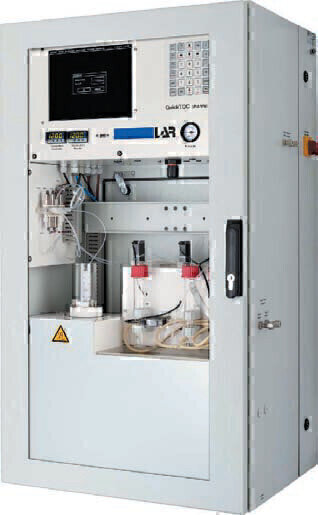

QuickTOCpharma of LAR Process Analysers AG I s an on-line measuring system for the detection of total organic carbon (TOC) in pharmaceutical water particularly for ‘Highly Purified Water’ (HPW) and ‘Water for Injection’ (WFI), according to USP Chapter 643 and EP 2.2.44.

The TOC measuring QuickTOCpharma system was designed in cooperation with customers’ from the pharmaceutical industry in consideration of their special requirements.

Additional to general requirements the accuracy of the measuring results was especially focused upon. This can be guaranteed by using the patented LAR high temperature method (1,200°C). With a brand new measuring method patented from LAR easy operation and calibration are considered also.

According to its special applications for ‘Highly Purified Water’ (HPW) and ‘Water for Injection’ (WFI) the  QuickTOCpharma was optimised for measuring ranges of 500 ppb. But measuring ranges up to 2,000 ppb can be realised as well.

This measuring system focuses of course also on the adjustment to the constantly increasing demands in the market. It provides easily precise and accurate measurements in low level ppb ranges. Features and Benefits
• Catalyst-Free Technique • Highest Combustion Temperature (1,200°C) • Easiest Calibration and Validation
• Closed System to Prevent Contaminations • Highest Reproducibility • Fast response times of 3 minutes
• Infrared Detection • Lowest Operational Costs • Easiest Operation • Software according to 21 CFR Chapter 11
• TNb Detection Simultaneously (Optional) • Single and Dual Channel Operation • No Memory effects • Multi-Channel Measurement.

Full information can be found at: www.metrohm-process.co.uk
