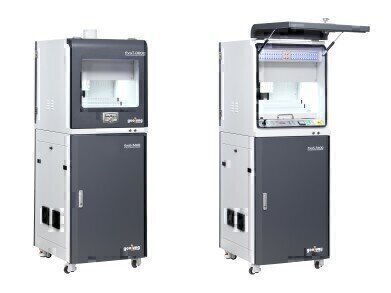

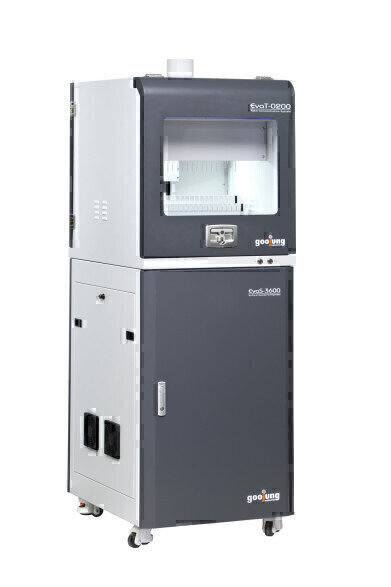

Integrated Total Concentration System, EVATROS T.C.S ™

Goojung Engineering Co. Ltd. has launched a new sample preparation system, EVATROS T.C.S^TM. It is a blow-down type sample evaporation system with built-in gas generator that is supplied for nitrogen or dry air gas.
The system consists of the sample concentration part and gas supplying unit.
With independently controlled gas spray nozzle and height adjustable nozzle, Evatros T.C.S provides convenient and efficient evaporation. Integrated system with gas generator saves operating cost and provides fast and constant evaporation.

Main Features

• Fully Integrated: Concentrator with gas supplying module generator provides dual mode operation (Nitrogen and Air).
• Smart Control & Ease of Use.
• Safe: Built-in hood system prevents exposure to toxic gases.
• Transparency: Visual monitoring of whole sample through a glass window, terraced heating block with slit.
• Heating & Cooling: Temperature is precisely controlled by a heating block and cool down system ensuring sample preservation.
• Fast & Constant: Using air & nitrogen and adjustable nozzle height it improves evaporation speed and keeps the flow & pressure constant for all sample tubes.
• Cost Effective: Saves the cost of gas cylinder within a year, thus reducing Lab operating costs.
• Low Maintenance: No contaminated part and cross contamination, no water bath.

Applications

• Food Industry
• Pharmaceutical Company
• Veterinary Service Laboratory
• Crop Science
• Health & Environment Research
• Agricultural Research
• Fishery Products Quality Management
• Waterworks Research
• Disease Control and Prevention
• Animal and Plant Quarantine Agency.

Blow down Evaporator, EVATROS C

Evatros C sample concentrator control up to 48 nozzles simultaneously and consists of terraced 2 line heating blocks which have a slit to check the evaporation process without any additional step and a terraced block to make it easy to monitor rear side sample tubes. A completely closed system and built-in ventilation unit protect the operator from exposure to any evaporated vapor. Adjustment of nozzle height can be easily controlled by Joy-stick and drawer type shelf is used for sample preparation such as sample loading into the system. An independently regulated nozzle system provides a constant gas supply without variation of flow and pressure regardless of the number of nozzle used. Every nozzle can be turned on/off separately and also as a set (12 nozzles), therefore providing optimized evaporation conditions to use from one sample to 48 samples simultaneously

Advantages

• Up to 48 sample capacity: 48 samples can be evaporated simultaneously
• Variable sample volume: Interchangeable heating block for variable sample tube
• 48 samples from 2mL to 16mL
• 24 samples for 50mL
• 8 samples for 200mL
• 5 ways blowing nozzle: Improves evaporation speed and cover condensed area
• Constant Flow of gas: Regulate all valves to provide constant flow
• Non-eclipse, terraced heating block: Easy to monitor evaporation process
• Sliding sample tray: Convenient for sample preparation
• Options: Acid proof option and UV light blocking option
• Built-in Ventilation.

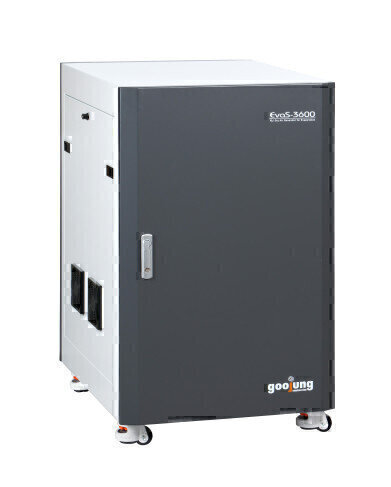

Gas Supplying Unit, EVATROS G

EVATROS G, gas generator is a gas supplying unit especially designed for blow down evaporator. Evatros T.C.S consists of concentrator and gas generator and Evatros G is a gas supplying unit for Evatros C.
It is modular system to supply gas for concentrator and there are three models. EA-3000 is for dry air, EN-0600 is for nitrogen and ES-3600 is for both gases. EA-3000 and EN-0600 can be upgraded to ES-3600 easily. By selection switch, system supply dry air(200L/min) and nitrogen(60L/min).

Main Features and Advantages

• Modular System : Generating parts for nitrogen and air are modularized, user selects proper module for their application.
• Easy to Upgrade : Modular system can be easily upgraded by adding the parts for each gas.
• Dual Gas supplying : During operation, user can change the gas from air to nitrogen by selection switch without breaking the process and vice versa.
• Cost Effective : Save the cost of gas cylinder within a year.
• Convenience : Ready to use by pre-set conditions of purity, pressure and flow.
• Safety : Pressurized air system is controlled by pressure switch.
• Noiseless.
