Flexible Vacuum Mixing Dispersion System

A new Vacuum Dispersion and Mixing System which offers users’ outstanding flexibility, is now available from laboratory instrumentation specialists Fullbrook Systems. The range of Dispermat CHS Vacuum Systems, manufactured by VMA-Getzmann GmbH, is ideal for small batches and sample production where vacuum is required.

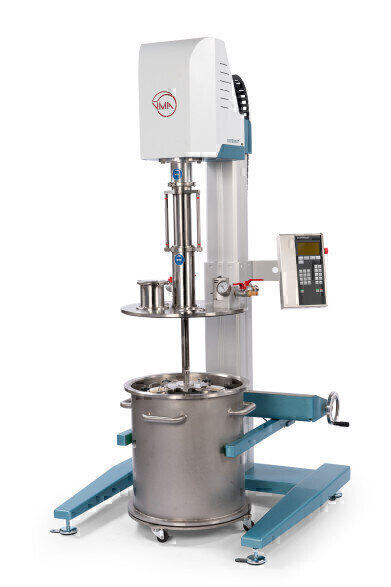

The Dispermat CHS vacuum system offers users exceptional versatility because it’s designed to accept single wall pails, buckets, non-standard and most importantly even users own containers. Users place the container on the mobile system trolley then a top-mounted fixing ring is screwed into place which securely holds the container in place. The vacuum cylinder is then placed over the container whilst the assembled vacuum system is positioned underneath the powerful Dispermat AE pilot plant vacuum dissolver, ready for the dispersion process to begin.

The dissolver disc is height adjustable even with the cover in place which allows the blade to be positioned at the perfect height to ensure that addition of powders can be made to the batch under optimum conditions. The complete process and the product under vacuum are able to be observed by the operator through a large viewing glass in the vacuum cover.

The solid scraper arm within the vacuum container effectively removes any product residue which is sticking on the container wall and folds it back into the dispersion process. For temperature sensitive applications, an optional PT100 probe enables operators to control temperature as required.

At the end of the dispersion process the container is simply released and removed, the finished de-aerated and dispersed product is held in its own container, so no transfer to another container, which often adds air back in, or cleaning is required.

The Dispermat CHS30 accepts 30 litre containers but is also available for container volumes up to 60 litres and also for other specific container sizes if required. An explosion-proof ATEX certified version is also available.
