Particle Analysis with Wide Measurement Range and Variable Dispersion Methods

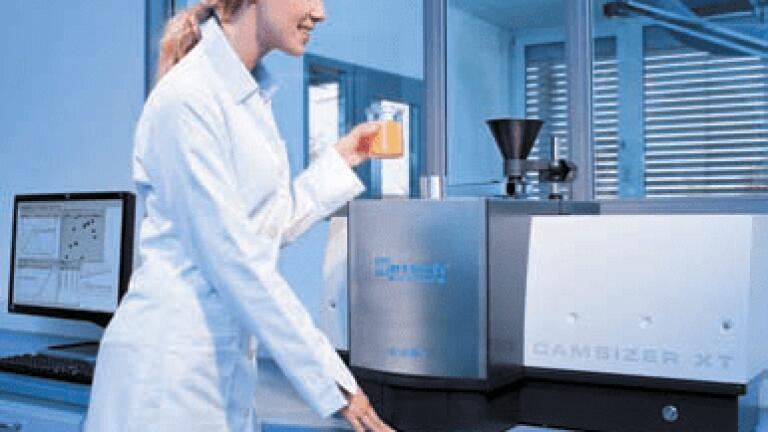

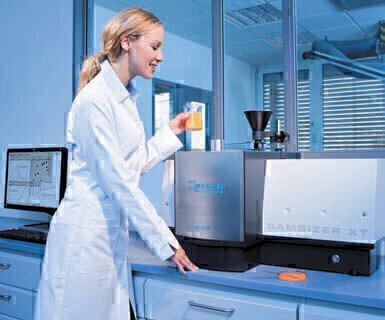

The quality control of fine powders in a size range from 1μm to 3mm can be substantially improved with Retsch Technology’s new Camsizer XT. More precise and faster analysis of particle size and particle shape helps to improve the product quality, reduce rejects and save costs.

The design of the Camsizer XT is based on the wellproven optical particle measurement system Camsizer but is optimised for finer samples. Not only the improved optical resolution but also new options for material feeding allow for an extended application range. Fine particles tend to agglomerate which makes it difficult to record the properties of a single particle. Therefore, it is important to have various possibilities of feeding the sample to the analysis area to be able to find for each material the optimum between the desired dispersion of the agglomerates and the undesired destruction of the individual particle. The Camsizer XT offers three alternative dispersion methods. Pourable, not

agglomerated particles are fed to the analysis area by the vibrating feeder of the ‘X-Fall’ module. With the ‘X-Jet’ module agglomerated particles can be accelerated and dispersed through a nozzle with adjustable overpressure. Finally, particles can be dispersed in liquids in the wet module ‘X-Flow’, optionally with ultra sound. Thus it is possible to choose the optimum method for each sample type.

Benefits include: digital image processing, according to ISO 13322-2, with patented two-camera-system; wide dynamic measuring range from 1μm to 3mm; newly developed optical system with ultra-strong LEDs for highest resolution and excellent depth of sharpness; reliable detection of  smallest amounts of ‘undersize’ and ‘oversize’; very short measurement time of 1 – 3 minutes; modular System ‘X-Change’ for dry and wet dispersion; and measurement results are 100% compatible to sieve analysis if required.
