Particle Sizing with AutoSampler and Small Volume Wet Dispersion Unit

Ideal for automation of measurement series of up to 26 samples and for measurements in organic solvents or if only minimal sample quantities are available. Worldwide the Laser Particle Sizers ANALYSETTE 22 ensure precise determination of particle size distributions, by Static Laser Scattering – in production and quality control as well as in research and development. Benefit from their decisive advantages: extremely simple operation and short analysis times for consistently reproducible and reliable results.

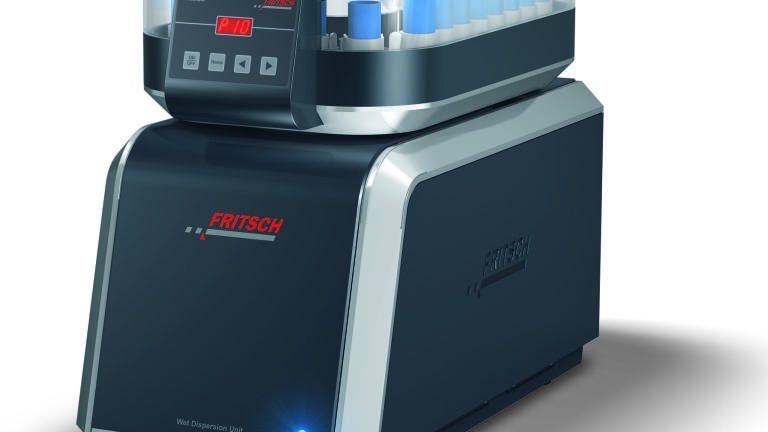

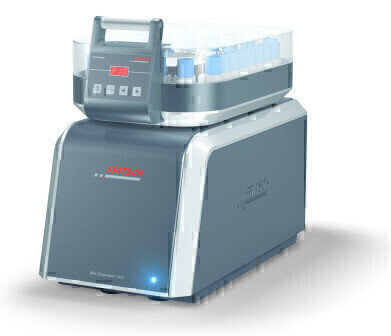

New AutoSampler
Ideal for automation of measurement series: 26 positions for 40 ml containers are available for complete sample feeding, automatic dispersion, measurement and cleaning.

• Complete sample feeding via tilt function
• Programmable rinsing function for each container
• Automatic SOP control of all processes
• Retrofittable for the FRITSCH Wet Dispersion Unit

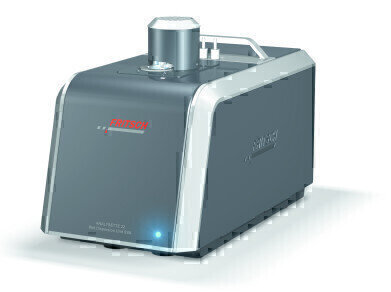

New Small Volume Wet Dispersion Unit
Ideal for measurements in organic solvents or if only minimal sample quantities are available. The Small Volume Wet Dispersion Unit is suitable for all kinds of dispersion liquids and needs less than 50 ml liquid for the whole measuring circuit. Automatic measurement, rinsing and analysis are guaranteed.

• Strong 100 watt ultrasonic power, controllable
• Automatic Rinsing for fast cleaning
• Liquid circulation system without dead space
• All functions are SOP-controlled

Choose according to your needs
The new AutoSampler as well as the new Small Volume Wet Dispersion Unit can be combined with both models of the FRITSCH Laser Particle Sizers ANALYSETTE 22. Either the ANALYSETTE 22 MicroTec plus – the perfect all-round-laser with a measuring range of 0.08 – 2000 μm for all typical measurement tasks; or the ANALYSETTE 22 NanoTec plus, the high-end instrument for measurements down to the nano range – for maximum precision and sensitivity for the smallest particles through the measurement of the backward scattering in a third laser beam.

Test the FRITSCH Laser Particle Sizers
Send us your sample for a free of charge sample measurement – we will send you a detailed analysis protocol. Compare for yourself.

Experience the entire spectrum of the FRITSCH particle sizing instruments from Digital Image Analysis to Static Laser Scattering live at ILMAC 2013 • Hall 1.1, Booth B117.

Up-dated information with descriptive videos at www.fritsch-sizing.com
