NEW from Eppendorf the TCA-3 - Data Logger and Advanced Auto-Dialer for ULT Freezers

Nov 07 2012

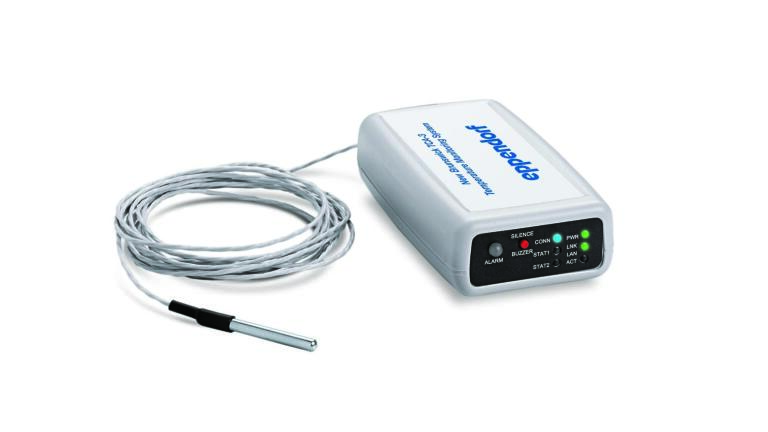

Eppendorf proudly presents the new all-in-one TCA-3 Temperature Monitoring System. The TCA-3 is an independent temperature monitor with alarm, electronic chart recorder, and an autodialer — all incorporated in a compact communication pod. There is no software to install The TCA-3 transmits data to professionally-managed centralized data servers where redundant systems store and record chamber and ambient temperature and alarms. Access real-time data via a web portal from anywhere in the world. The intuitive data graphing and tracking functions provide a complete record of freezer performance. To see how easy it is to install the Eppendorf TCA-3 visit: www.epppendorf.com/freezers

Features

Web-based access to data from anywhere in the world
Secure, encrypted data transmission
Ambient temperature probe
System setup in less than 5 minutes - simply connect to Ethernet
No software to install or maintain
Phone, text and e-mail alarm notification
Historic data recording and report generation
Non-alterable data meets regulatory requirements
Data enables corrective action plans
Independent alarm notifications
Compatible with any freezer
Firewall compatible
Power over Ethernet

Click here to try the TCA-3 Demo!

Technical specifications
Dimensions	125 x 65 x 30 mm
Weight	227 g
Sampling rate	User-selected, 30 sec. to 24 hr.
Emergency data storage	256 data points
Operating environment	-40° C to 70° C, 5 to 95 % rh

Performance specifications
In-Chamber Temperature Sensor
Temperature range	-200° C to +200° C
Typical accuracy	±1° C
Measurement resolution	0.1° C
Sensor type	1 x RTD
Ambient Temperature Sensor
Temperature range	-40° C to +70° C
Typical accuracy at	25° C ±1.4° C
Typical accuracy over full range	±2.1 %
Measurement resolution	0.21° C

Ordering information
*Description*	*Electrical service*
Pod and probe with wall plug power	50 Hz
Order No.	P0625-2050
