Two New Fittings for Conical Ports Introduced

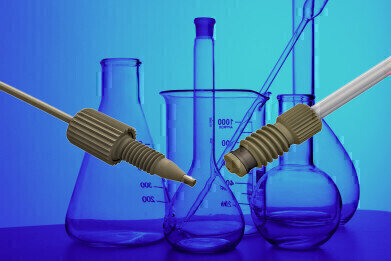

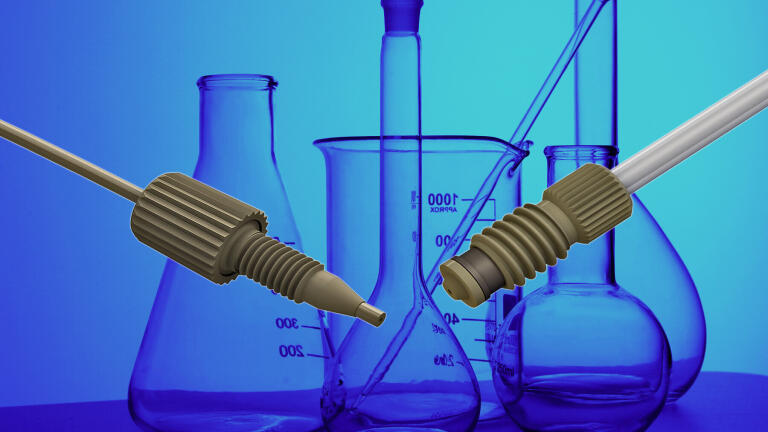

New fittings designed by Diba Industries provide R&D and manufacturing engineers safe stability for conical ports. The tapered 10-32 Cone-Tip Click-N-Seal™ Ultra and 6-40 PEEK™ thread fittings each include reliable mechanisms to handle fluids.

The 10-32 Cone-Tip Click-N-Seal Ultra fitting is pressure-rated for up to 2000 psi (140 bar) with sturdy PEEK construction. It uses a unique method for hand-tightening fittings. The cap clicks when the right torque is achieved, ensuring a secure seal without guesswork or a wrench. It can be used for 1/16” outside diameter semi-rigid tubing such as PEEK™, PTFE, ETFE and FEP.

Diba’s 6-40 PEEK fitting handles pressure up to 500 psi (33 bar) and houses a PEEK ferrule insert and type 316 stainless outer steel case. It can be used as a replacement part for Lee Minstac™, Tinytight™, and Upchurch™ 6-40 Super Flangeless™ ferrules. Diba’s Omni-Lok™ Type S fitting system further bolsters the fitting. A two-piece ferrule attaches to the outside of the tubing and is surrounded by a stainless steel lock ring with just the PEEK portion of the connection system in the fluid’s path. The ferrule sits in an opening of the fitting, allowing complete thread engagement with the conical port.
