Compact cleanroom, precision airflow

Working with dirty or offgassing components in a clean room can be a challenge. Some industrial and R&D applications require both a particle-free environment and handling of materials that emit particles or gases.

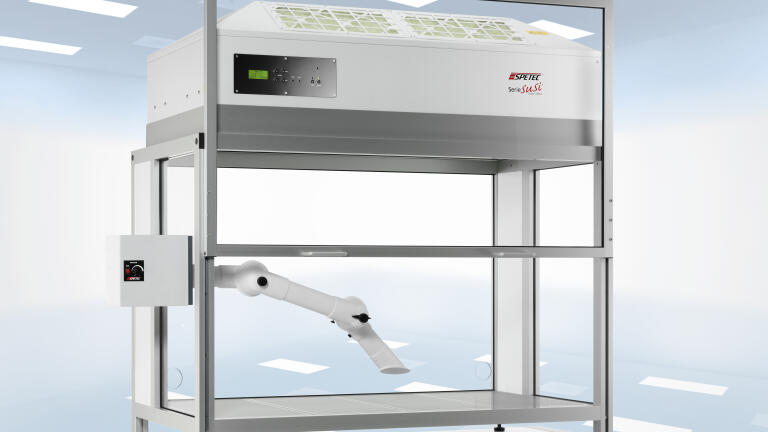

To meet this need, Spetec® has developed the Flow Box EFBS - a laminar flow box with an integrated, acid-resistant extraction unit. What sets the EFBS apart is its side-mounted extraction system connected to a universally adjustable telescopic arm. The arm’s tip can be positioned with pinpoint precision to capture particles or gases at the source, while the component itself remains bathed in filtered air. Extraction rates are continuously adjustable, up to 1.2 m³/min.

A single Flow Box EFBS creates an effective clean room area of 0.37–1.12 m², which is often sufficient for many tasks. Its Type H14 filter removes at least 99.995% of particles (0.12 μm, MPPS), improving air quality in the workspace by over 10,000 times compared with ambient air - achieving ISO class 5 standards without any building work.

The Flow Box EFBS is built from high-quality materials, including acrylic glass and anodised aluminium, ensuring durability and safety in demanding environments.
