New Universal Cutting Mill Combines Powerful and Gentle Comminution with Maximum Flexibility

The New Universal Cutting Mill from Fritsch is ideal for size-reduction for a wide range of different materials due to variable adjustment of the rotational speed of the rotor, various knife geometries, replaceable blades, practical sieve cassettes and an unmatched ease of cleaning.

The high-speed PULVERISETTE 19 Universal Cutting Mill with variable rotational speed adjustment between 300-3000 rpm comminutes with a maximum feed size of 70 x 80 mm and a throughput quantity of up to 60 l/h fast and effectively dry, soft to medium-hard sample materials as well as fibrous materials and plastics with reliable reproducible results. Straw, films and similar materials can be fed in their full length without additional preparation. And the PULVERISETTE 19 is also ideal for RoHS tests.

The low-speed Universal Cutting Mill PULVERISETTE 19 with variable rotational speed adjustment between 50-700 rpm offers very powerful comminution of hard, tough-elastic samples or of small sample amounts and is the ideal solution for all cases where the loss of easily volatile substances or a larger fine share should be avoided.

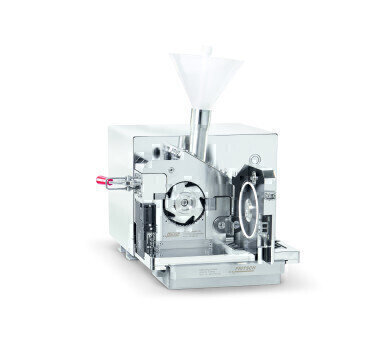

The PULVERISETTE 19 is also available in both variable rotational speed versions in a corrosion-resistant stainless steel 316L version. It is FDA compliant and has an increased resistance to corrosive media such as alkalis and acids, but especially to chloride containing media.

Fritsch Cyclone separators for sample exhaustion open up new possibilities, which would otherwise be impossible. The powerful airflow of the Cyclone separators ensures simple feeding and faster throughput. Due to faster operation and the additional stronger cooling, the thermal load of the sample materials is minimised, so that temperature-sensitive samples can also be ground without any problems.

The entire grinding chamber can be opened without any tools in seconds with just two simple motions for complete cleaning of all the cutting tools.

Fritsch offers 7 different models of Cutting Mills with comprehensive accessories, a max. feed size from 70 x 70 mm – 120 x 85 mm, a max. throughput from 50 l/h up to 85 l/h, a final fineness from 0.2 – 20 mm and rotational speeds from 50 – 3000 rpm.

Special features of Fritsch Cutting Mills and how they work can be seen in the video
