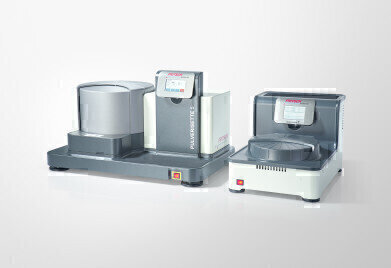

Creation of Nano Particles and IN SITU measurement

Oct 01 2019

FRITSCH Planetary Mills premium line are extremely strong all-purpose mills that offer premium performance, usability and safety. Due to revolutionary rotational speeds of up to 1100 rpm, nano results are achieved by powerful wet and dry comminution of hard, medium-hard, soft, brittle and moist samples by the high-energy impact of grinding balls in rotating grinding bowls. Your advantage: extremely short grinding times and reliably reproducible results down into the nano range. FRITSCH Planetary Mills premium line are also a perfect choice for highly efficient mixing and homogenising or for mechanical activation and alloying in materials research.

Choose according to your needs!

High-performance grinding down into the nano range –

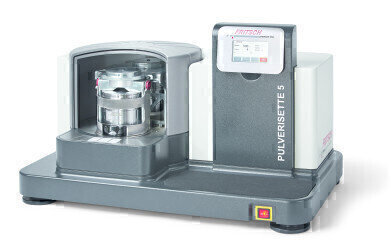

Planetary Mill PULVERISETTE 5 premium line:

Extra strong 2.2 kW drive power and extremely high centrifugal acceleration up to 64 g and up to 800 rpm (Rotational speed of the bowl 1600 rpm)
Motor-driven ServoLOCK clamping of the grinding bowls
Safe and user-independent reproducible clamping
2 grinding stations for grinding bowls 125 - 500 ml volume
Intuitive touchscreen operation with colour display

Nano grinding for small quantities –

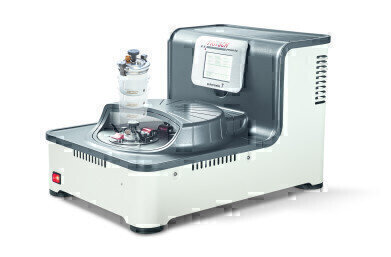

Planetary Micro Mill PULVERISETTE 7 premium line:

(Rotational speed of the bowl 2200 rpm) Extra strong centrifugal acceleration with up to 95 g and up to 1100 rpm (Rotational speed of the bowl 2200 rpm)
Extremely fast bowl changing due to SelfLOCK clamping
2 grinding stations for grinding bowls 20 ml, 45 ml and 80 ml volume
For the first time grinding bowls and lid form a single unit – and snap into place in the machine – without additional clamping and without the risk of incorrect operation
Intuitive touchscreen operation

Grinding has never been safer!

Ideal for sample preparation in the areas of: Geology and Mineralogy, Metallurgy, Ceramics, Material Research/Mechanical alloying, Nanotechnology, Pharmaceuticals, Chemistry, Biology, Sample preparation for analysis.

Only available from FRITSCH - IN SITU measurement

Turn your Planetary Mill premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included Mill-Control software.

Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded. EASY GTM bowls are available in different materials.
