Small, Smaller, Ministat

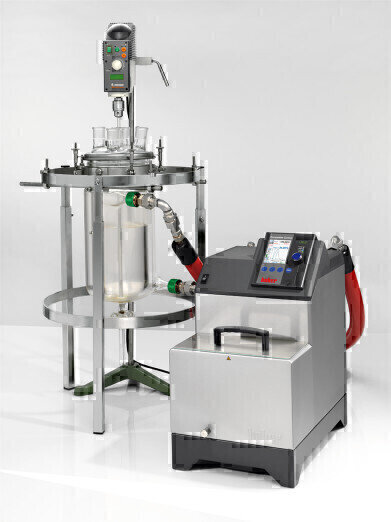

Huber Ministats are the smallest cooling thermostats in the world. Despite their size Ministats have enough power to thermoregulate photometers, refractometers, viscosimeters, distillation apparatus, reactor vessels and mini plants and their compact form allows them to be placed in areas  where space is at a premium, for example laboratory extraction hoods. Ministats can be used to control externally closed applications or alternatively objects can be
thermoregulated directly within the bath.

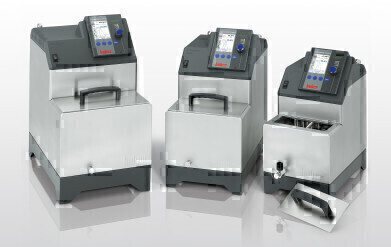

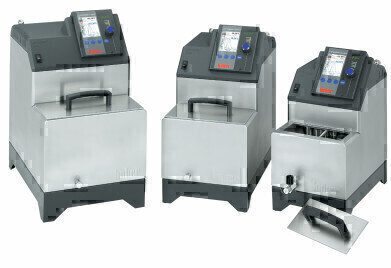

The Ministat range consists of three models, which are available as either air or water cooled versions. Depending on the model, working temperatures are from -45°C to +200°C and cooling capacities of 600 watts can be achieved. The maximum admissible environmental temperature for continual operation is +40°C. A powerful variable speed pressure/suction pump allows optimum circulation and can be controlled using an optional pressure sensor, which protects delicate glassware. For energy saving and reduced heat dissipation all models have active cooling control, which regulates cooling in the event of a temperature rise or drop and ensures Ministats use only the energy they need.

The professional CC-Pilot controller comes as standard with TFT Display, six language options, RS232, sensor calibration, calendar and clock function, Auto- Start, adjustable safety limiting values and alarm signals.

Available in three software options, the CC-Pilot can be easily electronically upgraded to extend functionality and activate further features such as: programmer, cascade control, ramp function, user menus, calendar start and graphic display. Analogue connections according to NAMUR are available via the optional Com.G@te module, which enables integration into plants and process control systems.

More information can be found on the website, or in the new 2011/12 catalogue which can be downloaded at www.huber-online.com or requested free by calling +49 (0) 781 9603 123 or emailing info@huber-online.com.
