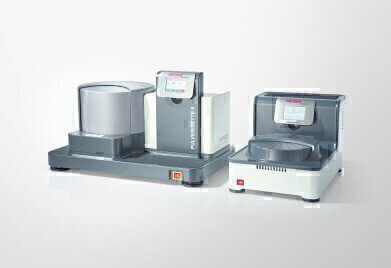

High-Performance Grinding Down to the Nano Range

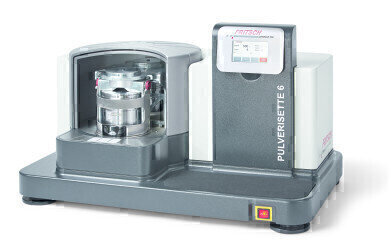

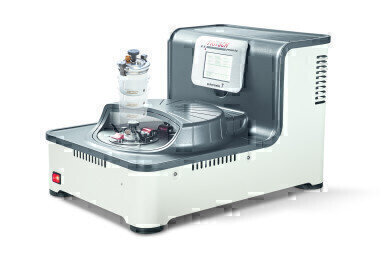

With two grinding stations, Fritsch have developed the new Planetary Mill PULVERISETTE 6 premium line as an extension to the PULVERISETTE 7 premium line: It is the ideal mill for fast wet and dry grinding of hard, medium-hard, soft, brittle and moist samples as well as for mechanical alloying, mixing and homogenising of larger sample quantities with reliable results down into the nano range, and absolutely secure automatic clamping of  the bowls by the mill.

The Planetary Mill PULVERISETTE 6 premium line features extra strong 2.2 kW drive power and extremely high centrifugal acceleration up to 64 g and up to 800 rpm (rotational speed of the bowl 1600 rpm). The two grinding stations are suitable for 160 ml, 250 ml and 500 ml bowl volume.

With the completely brand new ServoLOCK clamping of the grinding bowls and the automatic check of the fastening of the bowls inside the mill, man and machine are optimally protected. In the event of impermissible operating states, the machine blocks the start of a grinding and if an imbalance occurs it automatically shuts off.

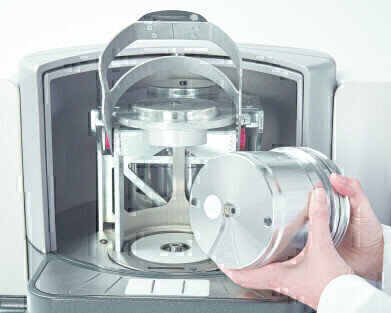

The grinding bowl is simply inserted in the PULVERISETTE 6 premium line from the front into the holder. Correct positioning is automatically ensured by a practical guide. The PULVERISETTE 6 premium line does not start until both bowls are correctly inserted and prevents due to bowl detection via RFID chip, the setting of too high speeds depending on the bowl material used.

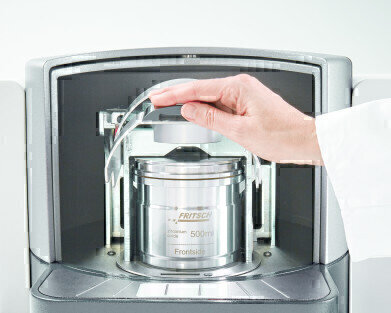

The revolutionary ServoLOCK is activated with a single hand motion by pressing down the clamp. It is automatically locked by the machine via ServoLOCK instead of manually. A LED light shows that the bowl is correctly inserted and clamped.

The PULVERISETTE 6 premium line is operated via the adjustable, ergonomically arranged touchscreen with high-resolution and logical menu structure in multiple languages and practical plain-text user navigation for fast and easy operation. Here you enter the variable rotational speed and define the grinding time. You can programme interval and pause times using the minutes and seconds timer and can save up to 10 programmes.
