Fast analysis of particle shape and size – ANALYSETTE 28 ImageTec/ImageSizer

Both models of the Particle Sizer ANALYSETTE 28 ImageTec (wet measurement) und ImageSizer (dry measurement) are ideal for all applications where not only the particle size is measured but especially reliable statements about the particle shape are of importance. Via the optical analysis of particle shape and particle size, damaged particles, contaminates, agglomerates and oversized or undersized particles are identified accurately and fast, and can be viewed as single images. At the same time, the instrument offers a fast and efficient particle size measurement. The measuring time depending on the sample quantity, is under 5 minutes and the result is available immediately. This makes the ANALYSETTE 28 the perfect measuring instrument for the easy quality control, as well as for research and for laboratory tasks – and it is the fast alternative to sieving.

Fast analysis of particle shape and size

• Extra-wide measuring range, individually adjustable
• High-performance camera with heavy-duty lenses
• Fast, simple operation via SOP control
• Effective integrated image analysis software ISS
• Extensive library for morphological analysis
• Valuable tools for reliable quality monitoring
• Practical report generator for individual presentation of results.

Due to the principle of Dynamic Image Analysis both models of the ANALYSETTE 28 offer the same benefits as an analysis via microscope, however due to the fully automatic process up to 30 images per second are delivered and therefore a much larger number of particles. As with a microscope, you can see the result of the analysis directly without any complicated evaluation. The special advantage: instead of just one image, any freely definable number of images can be recorded and evaluated. For faster representative results and higher precision in evaluation.

Powerful Camera - Strong Lenses – Simple Operation
The core of the ANALYSETTE 28 is a 5 megapixel industrial camera, which enables highest resolution, even with smallest particles. Large and small particles are captured, viewed and deleted directly in one image. The lenses are optimised for industrial use: With a simple, heavy-duty design, and hermetically sealed against dust and moisture, a precise opto-mechanical setting and high optical performance are ensured at any time.

Easiest Analysis at a Glance – The FRITSCH Cloud

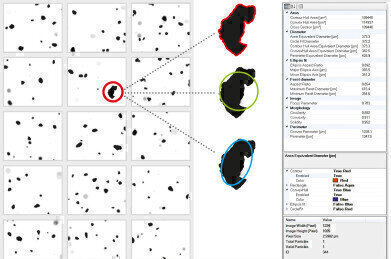

Even the evaluation of the measuring results is uniquely simple with the ANALYSETTE 28. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud. The really important information for you about the morphology will be shown by the position of the data point in the Cloud. You freely choose which statement is of interest to you: the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section. Especially convenient: have several measurements displayed simultaneously in a chart and you will immediately see the differences between the respective samples. A direct visual evaluation: brilliantly simple, uniquely flexible.

Choose according to your needs:

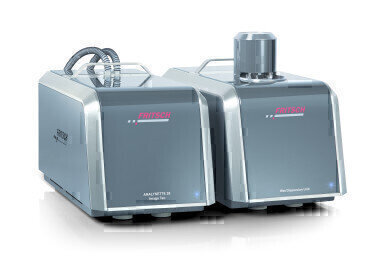

ANALYSETTE 28 ImageTec - ideal for wet measurement of suspensions and emulsions in a measuring range of 1 µm – 2.8 mm.

• Up to 5 apochromatic lenses
• Unique lens revolver
• Extremely quiet dispersion with strong pumping power
• Illuminated dispersion bath
• Optimal wet dispersion.

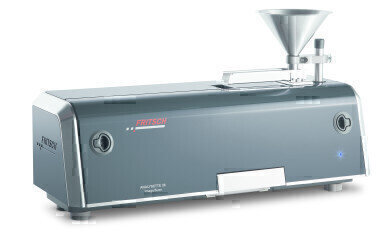

ANALYSETTE 28 ImageSizer - ideal for dry measurement of dry free-flowing powders and bulk solids in a measuring range of 20 µm to 20 mm.

• Up to 4 telecentric lenses
• Variable measuring time
• Practical Clean Design of the measuring chamber
• Optimal sample flowrate via controlled feeder
• Optimal particle concentration due to AutoCheck function
• Completely distortion-free images due to bi-telecentric lenses.

Test the FRITSCH Particle Sizers
Send us your sample for a free of charge sample measurement – we will send you a detailed analysis protocol. Compare for yourself.
