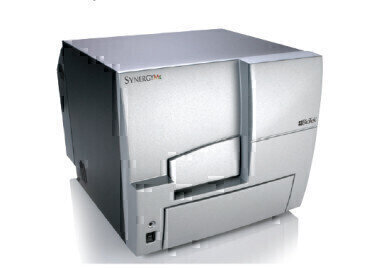

Monochromator-Based Multi-Mode Microplate Reader

Ultra Fine-Tuned™ technology is what sets the Synergy Mx Multi-Mode Reader apart. Its quadruple monochromator system selects wavelengths with a repeatability of plus or minus 0.2 nm. Its top optical head can focus up and down on the samples with a 100 μm resolution. Four slits on the excitation and emission side provide a choice of 16 bandpass combinations for every wavelength pair. Its advanced 4-Zone™ temperature control system incubates up to 65°C with a precision of ± 0.5°C at 37°C. These unique features and BioTek’s exclusive focus on microplate instrumentation and software make the Synergy Mx the most precise, sensitive and flexible multi-mode microplate reader available today for life-science research applications.

Features:
• High performance fluorescence (top and bottom), absorbance and dedicated luminescence detection systems accommodate all life-science research microplate applications
• Variable bandpass selection adds flexibility in fluorescence mode
• Cuvette port to measure standard 1-cm path cuvettes if only a few samples need to be run, or to compare data with a standard cuvette spectrophotometer
• Modular architecture allows purchase of required modes with the ability to upgrade later
