The new high-tech standard for Variable Speed Rotor Mills

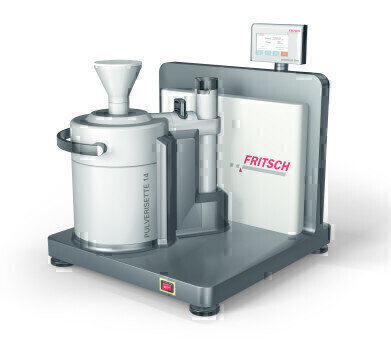

The FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 premium line offers impact, shearing and cutting comminution in one instrument – with a higher performance, better cooling and significantly quieter than comparable instruments. Its powerful motor is ideal for the particularly fast comminution of soft to medium-hard, brittle as well as fibrous materials and temperature-sensitive samples with an extremely fast sample throughput of up to 15 litres and more per hour, depending on the material and parameter settings.

Overview of the premium features:

• Powerful grinding with 22,000 rpm for particularly fast sample throughput;
• Max. feed size < 15mm, sample throughput of up to 15 l/h and more;
• AutoLOCK grinding chamber for particularly safe work
• Final fineness down to d50 < 40 μm, sieve rings 0.08 – 6mm;
• Particularly good cooling of the grinding material;
• Pleasantly quiet operation; and
• Very easy to clean due to clean design.

FRITSCH premium advantage: Especially powerful
A high-speed motor with ceramic bearings ensures a particularly high impact and rotor speed with an extra powerful 22,000 rpm.
Your advantage: finer results in shorter times.

FRITSCH premium advantage: Significantly better cooling
The new PULVERISETTE 14 premium line cools your sample during grinding significantly better than comparable instruments.
Your advantage: melting or sticking of the grinding material is greatly reduced, even with temperature-sensitive samples.

FRITSCH premium advantage: Incredibly safe operation
The new AutoLOCK grinding chamber facilitates automatic opening and closing with clamping and crushing protection. The additional Intelligence-Safety-Control-System only allows the instrument to start if the grinding set is fully and correctly inserted.

FRITSCH premium advantage: Fast, residue-free cleaning
The well-conceived Clean Design covers all the areas, which make the cleaning of your mill as easy as possible: All the surfaces are designed to be extremely dirt-resistant and easy to clean. And all the parts that need regular cleaning can be removed with a single motion without tools. Even the lid of the instrument can be easily removed for cleaning.

FRITSCH premium advantage: two instruments in one
Turn your Variable Speed Rotor Mill PULVERISETTE 14 premium line into a Cutting Mill with just a few simple motions for fast, efficient pre-grinding of fibrous materials and plastics – in an optimised mode with up to 10,000 rpm. Absolutely multifunctional with the choice of grinding with an impact or cutting rotor.

Test the FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 premium line. Send us your most difficult sample – we will carry out a complimentary sample grinding for you. Compare for yourself.
